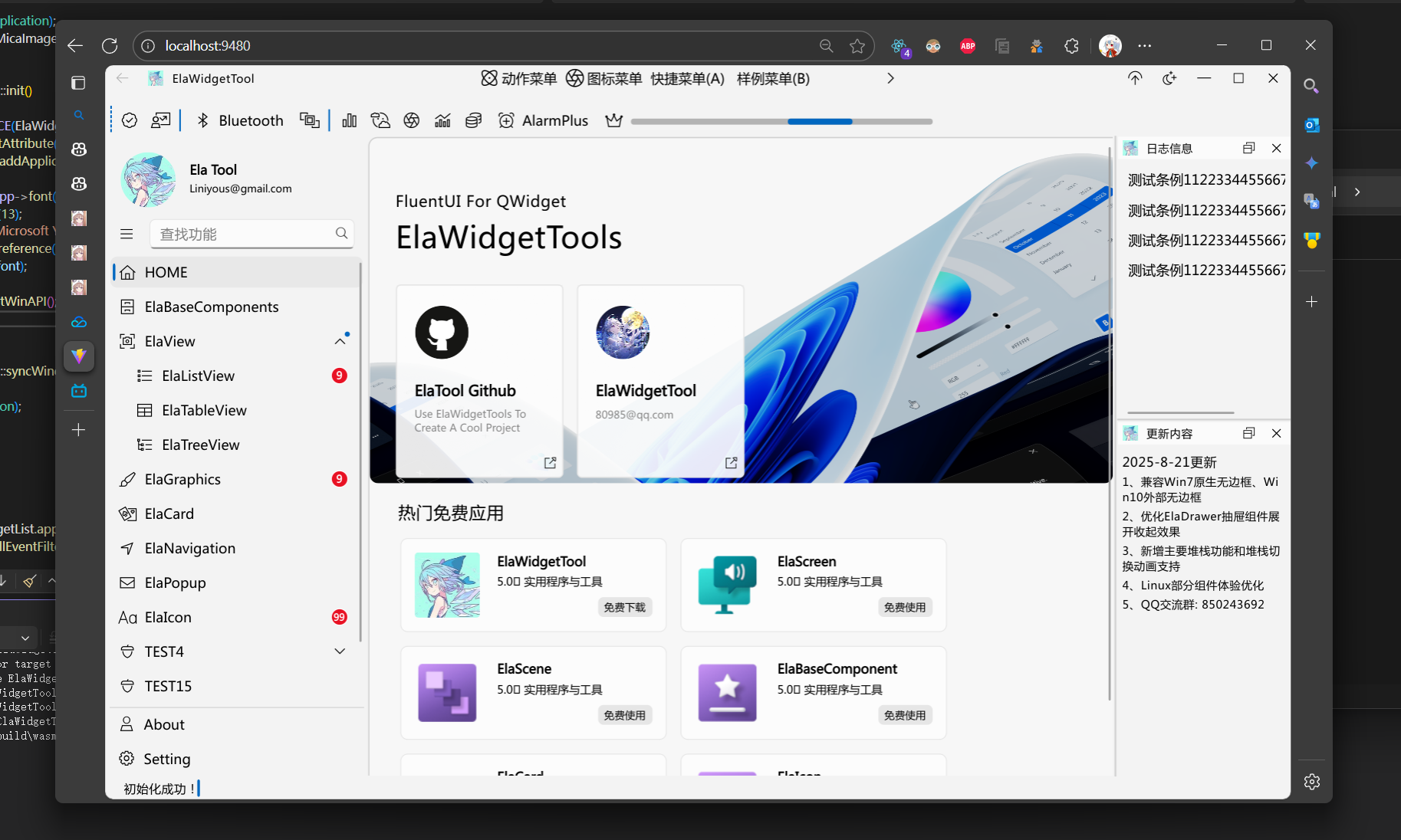

编译ElaWidgetTools for WebASM浏览器版本

完整代码

https://github.com/sAkuraOfficial/ElaWidgetTools

为cmake添加emsdk环境

安装emsdk的详细步骤此处省略，可在上一篇文章阅读https://www.sakuraofficial.site/archives/ji-lu-qt6pei-zhi-webasmbian-yi-huan-jing

以下是我的CMakeUserPresets.json配置，你只需要把地址改成你的qt、emsdk的地址的开头即可

{
  "version": 3,
  "configurePresets": [
    {
      "name": "wasm-emscripten",
      "displayName": "wasm-emscripten",
      "binaryDir": "${sourceDir}/out/build/wasm-emscripten",
      "generator": "Ninja",
      "architecture": {
        "strategy": "external",
        "value": "x64"
      },
      "cacheVariables": {
        "CMAKE_BUILD_TYPE": "Debug",
        "CMAKE_TOOLCHAIN_FILE": "C:/Qt/6.7.2/wasm_multithread/lib/cmake/Qt6/qt.toolchain.cmake",
        "QT_CHAINLOAD_TOOLCHAIN_FILE": "G:/dev_programs/emsdk/upstream/emscripten/cmake/Modules/Platform/Emscripten.cmake",
        "EMSDK": "G:/dev_programs/emsdk",
        "Qt6_DIR": "C:/Qt/6.7.2/wasm_multithread/lib/cmake/Qt6",
        "CMAKE_DEPENDS_USE_COMPILER": false,
        "CMAKE_C_DEPENDS_USE_COMPILER": false,
        "CMAKE_CXX_DEPENDS_USE_COMPILER": false
      },
      "environment": {
        "EM_CONFIG": "G:/dev_programs/emsdk/.emscripten",
        "EMSDK": "G:/dev_programs/emsdk",
        "EMSDK_NODE": "G:/dev_programs/emsdk/node/22.16.0_64bit/bin/node.exe",
        "EMSDK_PYTHON": "G:/dev_programs/emsdk/python/3.13.3_64bit/python.exe",
        "EMSCRIPTEN": "G:/dev_programs/emsdk/upstream/emscripten",
        "QTDIR": "C:/Qt/6.7.2/msvc2019_64",
        "PATH": "G:/dev_programs/emsdk;G:/dev_programs/emsdk/upstream/emscripten;G:/dev_programs/emsdk/upstream/bin;G:/dev_programs/emsdk/node/22.16.0_64bit/bin;$penv{PATH}"
      }
    }
  ],
  "vendor": {
    "qt-project.org/Presets": {
      "checksum": "l0FLWNDHovohW6ZdDZ7Ub+feYVQ="
    }
  }
}

编辑：项目根目录/CMakeLists.txt

  1. 此处为Emscripten添加了egl符号导出，因为Emscripten默认不导出egl符号，而qt需要使用。

  2. 启用webasm的多线程支持

cmake_minimum_required(VERSION 3.5)

project(ElaFramework VERSION 0.1 LANGUAGES CXX)

set(CMAKE_AUTOUIC ON)
set(CMAKE_AUTOMOC ON)
set(CMAKE_AUTORCC ON)

set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
add_compile_options("$<$<CXX_COMPILER_ID:MSVC>:/utf-8>")

if(EMSCRIPTEN)
    set(CMAKE_EXE_LINKER_FLAGS "${CMAKE_EXE_LINKER_FLAGS} -s GL_ENABLE_GET_PROC_ADDRESS")
endif()
if(EMSCRIPTEN)
    set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -s USE_PTHREADS=1 -matomics -mbulk-memory")
endif()

#在这里配置QT路径 例如 D:/Qt/6.6.2/msvc2019_64 D:/Qt/5.15.2/msvc2019_64 /home/liniyous/Qt/5.15.2/gcc_64
SET(QT_SDK_DIR C:/Qt/6.7.2/wasm_multithread CACHE PATH "QT SDK DIR" FORCE)
message("在CMAKE中配置 QT_SDK_DIR 选项指定QT路径; 当前路径: ${QT_SDK_DIR}")
SET(CMAKE_INSTALL_PREFIX ${CMAKE_SOURCE_DIR}/Install CACHE PATH "Installation path" FORCE)

option(BUILD_ELAPACKETIO "Build ElaPacketIO" OFF)
list(APPEND CMAKE_PREFIX_PATH ${QT_SDK_DIR})

find_package(QT NAMES Qt6 Qt5 REQUIRED COMPONENTS Widgets)
find_package(Qt${QT_VERSION_MAJOR} REQUIRED COMPONENTS Widgets)

add_subdirectory(ElaWidgetTools)
if (WIN32 AND BUILD_ELAPACKETIO)
    add_definitions(-DBUILD_WITH_ELAPACKETIO)
    add_subdirectory(ElaPacketIO)
endif ()
add_subdirectory(ElaWidgetToolsExample)

if (${QT_VERSION} VERSION_LESS 6.1.0)
    set(BUNDLE_ID_OPTION MACOSX_BUNDLE_GUI_IDENTIFIER com.example.ElaWidgetTools)
endif ()

if(EMSCRIPTEN)
    set_target_properties(ElaWidgetTools PROPERTIES
        LINK_FLAGS "-s USE_PTHREADS=1 -matomics -mbulk-memory -s MODULARIZE=1 -s EXPORT_NAME=ElaWidgetTools_entry"
    )
endif()

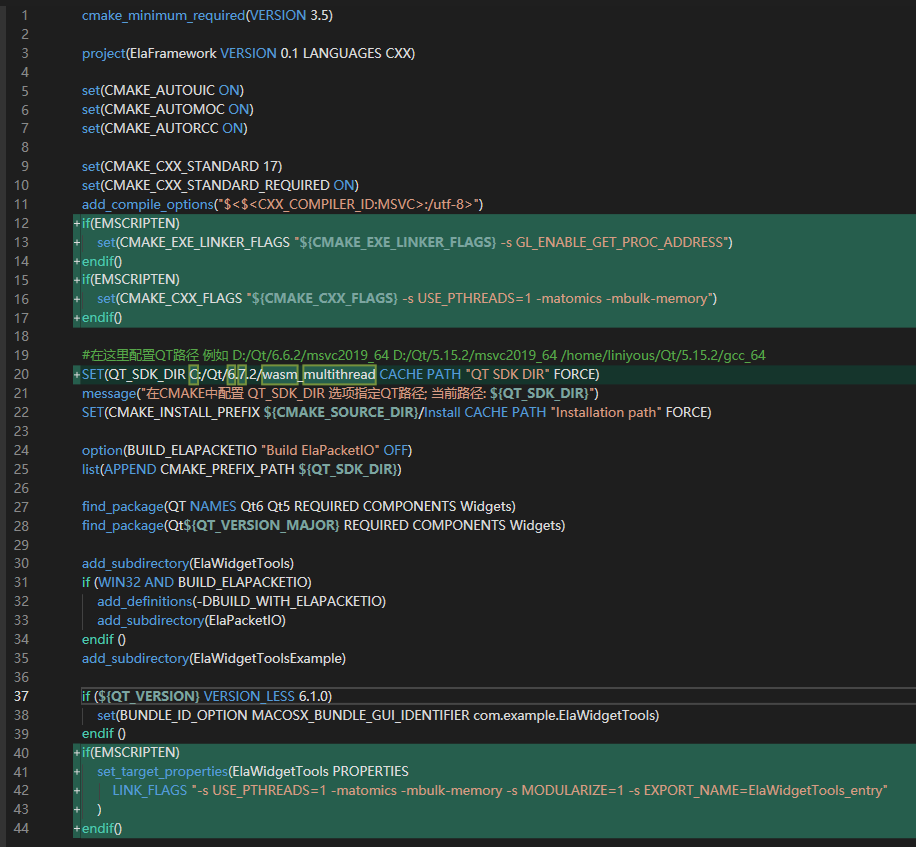

更改部分如图所示：

编辑：项目根目录/ElaWidgetTools/CMakeLists.txt

此处设置ElaWidgetTools为静态库，这么做是因为WebASM不支持动态库，会报很多错误

cmake_minimum_required(VERSION 3.5)

project(ElaWidgetTools VERSION 2.0.0 LANGUAGES CXX)

add_definitions(-DELAWIDGETTOOLS_LIBRARY)
option(ELAWIDGETTOOLS_BUILD_STATIC_LIB "Build static library." OFF)

FILE(GLOB ORIGIN *.h *.cpp)
FILE(GLOB PRIVATE private/*.h private/*.cpp)
FILE(GLOB DEVELOPER DeveloperComponents/*.h DeveloperComponents/*.cpp)

source_group(include FILES ${INCLUDE})
source_group(private FILES ${PRIVATE})
source_group(DeveloperComponents FILES ${DEVELOPER})

set(PROJECT_SOURCES
    ${ORIGIN}
    ${PRIVATE}
    ${DEVELOPER}
    ${CMAKE_CURRENT_SOURCE_DIR}/ElaWidgetTools.qrc
)

if(EMSCRIPTEN)
    set(LIB_TYPE "STATIC")
else()
    option(ELAWIDGETTOOLS_BUILD_STATIC_LIB "Build static library." OFF)
    if (ELAWIDGETTOOLS_BUILD_STATIC_LIB)
        set(LIB_TYPE "STATIC")
    else ()
        set(LIB_TYPE "SHARED")
    endif ()
endif()

if (${QT_VERSION_MAJOR} GREATER_EQUAL 6)
    qt_add_library(${PROJECT_NAME} ${LIB_TYPE}
        ${PROJECT_SOURCES}
    )
else ()
    add_library(${PROJECT_NAME} ${LIB_TYPE}
        ${PROJECT_SOURCES}
    )
endif ()

FILE(GLOB EXPORT_HEADERS ${CMAKE_CURRENT_SOURCE_DIR}/*.h)
target_include_directories(${PROJECT_NAME} PUBLIC
    $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}>
    $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/private>
    $<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/DeveloperComponents>
    $<INSTALL_INTERFACE:${PROJECT_NAME}/include>
)

if (MINGW)
    set_target_properties(${PROJECT_NAME} PROPERTIES PREFIX "")
endif ()
if (MSVC)
    set_target_properties(${PROJECT_NAME} PROPERTIES DEBUG_POSTFIX "d")
endif ()

set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})
set(CMAKE_LIBRARY_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})
set(CMAKE_ARCHIVE_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})
if (WIN32)
    target_link_libraries(${PROJECT_NAME} PUBLIC
        Qt${QT_VERSION_MAJOR}::Widgets
        D3D11
        DXGI
    )
else ()
    target_link_libraries(${PROJECT_NAME} PUBLIC
        Qt${QT_VERSION_MAJOR}::Widgets
    )
endif ()


install(
    TARGETS ${PROJECT_NAME}
    EXPORT ${PROJECT_NAME}
    ARCHIVE DESTINATION ${PROJECT_NAME}/lib
    LIBRARY DESTINATION ${PROJECT_NAME}/lib
    RUNTIME DESTINATION ${PROJECT_NAME}/bin
)
install(TARGETS ${PROJECT_NAME}
    LIBRARY DESTINATION ${CMAKE_INSTALL_PREFIX}/ElaWidgetToolsExample
    RUNTIME DESTINATION ${CMAKE_INSTALL_PREFIX}/ElaWidgetToolsExample
)
if (MSVC AND NOT LIB_TYPE STREQUAL "STATIC")
    install(
        FILES $<TARGET_PDB_FILE:${PROJECT_NAME}>
        DESTINATION ${CMAKE_INSTALL_PREFIX}/ElaWidgetToolsExample OPTIONAL)
endif ()

install(FILES ${EXPORT_HEADERS} DESTINATION ${PROJECT_NAME}/include)

set(INCLUDE_DIRS include)
set(LIBRARIES ${PROJECT_NAME})
set(LIB_DIR lib)

install(
    EXPORT ${PROJECT_NAME}
    FILE ${PROJECT_NAME}Targets.cmake
    DESTINATION ${PROJECT_NAME}/lib/cmake
)

include(CMakePackageConfigHelpers)
write_basic_package_version_file(
    ${PROJECT_BINARY_DIR}/${PROJECT_NAME}ConfigVersion.cmake
    VERSION 2.0.0
    COMPATIBILITY SameMajorVersion
)

configure_package_config_file(
    ${PROJECT_SOURCE_DIR}/${PROJECT_NAME}Config.cmake.in
    ${PROJECT_BINARY_DIR}/${PROJECT_NAME}Config.cmake
    INSTALL_DESTINATION lib/cmake
    PATH_VARS INCLUDE_DIRS LIBRARIES LIB_DIR
    INSTALL_PREFIX ${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}
)

install(
    FILES ${PROJECT_BINARY_DIR}/${PROJECT_NAME}Config.cmake ${PROJECT_BINARY_DIR}/${PROJECT_NAME}ConfigVersion.cmake DESTINATION ${PROJECT_NAME}/lib/cmake
)

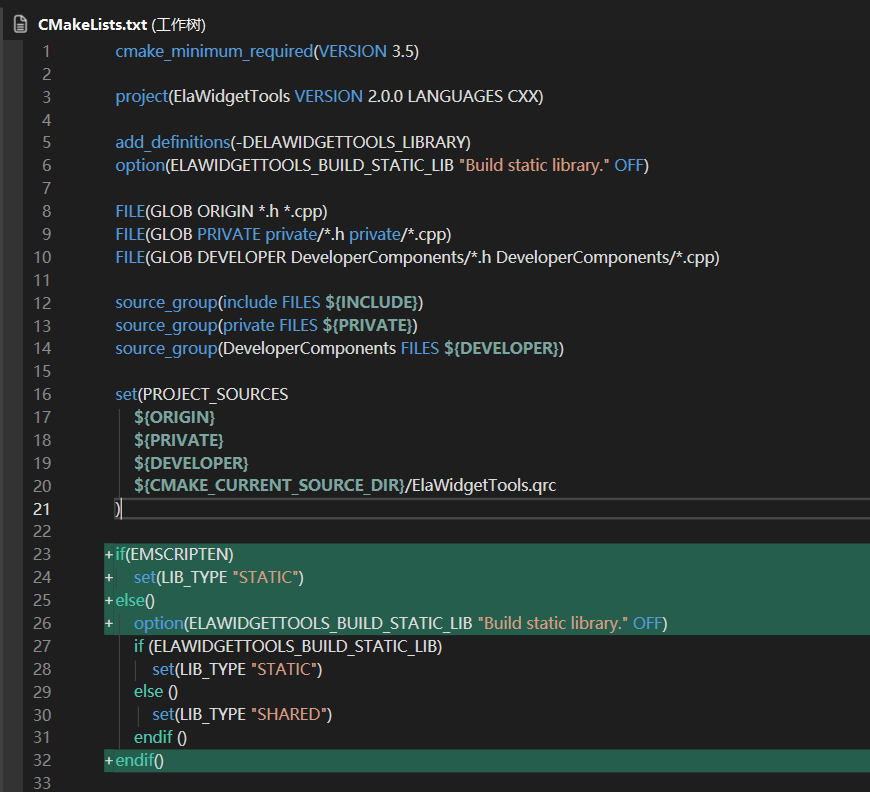

更改部分如图所示：

添加中文字体支持

qt webasm默认不支持中文字体，也无法从浏览器环境获取字体，因此需要自己嵌入一个字体

参考以下方法添加字体：

编辑：项目根目录/ElaWidgetToolsExample/CMakeLists.txt

添加.ttf字体遍历

cmake_minimum_required(VERSION 3.5)
cmake_policy(SET CMP0087 NEW)
project(ElaWidgetToolsExample VERSION 0.1 LANGUAGES CXX)

FILE(GLOB ORIGIN *.cpp *.h)
FILE(GLOB MODELVIEW ModelView/*.h ModelView/*.cpp)
FILE(GLOB EAXMPLEPAGE ExamplePage/*.h ExamplePage/*.cpp)

source_group(ModelView FILES ${MODELVIEW})
source_group(ExamplePage FILES ${EAXMPLEPAGE})

set(PROJECT_SOURCES
    ${ORIGIN}
    ${MODELVIEW}
    ${EAXMPLEPAGE}
)

if (${QT_VERSION_MAJOR} GREATER_EQUAL 6)
    qt_add_executable(${PROJECT_NAME}
        MANUAL_FINALIZATION
        ${PROJECT_SOURCES}
    )
    #遍历所有资源文件
    file(GLOB_RECURSE RES_PATHS *.png *.jpg *.svg *.ico *.ttf *.webp *.js *.ttf)
    foreach (filepath ${RES_PATHS})
        string(REPLACE "${CMAKE_CURRENT_SOURCE_DIR}/" "" filename ${filepath})
        list(APPEND resource_files ${filename})
    endforeach (filepath)

    qt_add_resources(${PROJECT_NAME} "ElaWidgetToolsExample"
        RESOURCES PREFIX "/"
        FILES
        ${resource_files}
    )
else ()
    qt5_add_big_resources(PROJECT_SOURCES
        ElaWidgetToolsExample.qrc
    )
    add_executable(${PROJECT_NAME}
        ${PROJECT_SOURCES}
    )
endif ()

set(CMAKE_RUNTIME_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})
set(CMAKE_LIBRARY_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})
set(CMAKE_ARCHIVE_OUTPUT_DIRECTORY ${CMAKE_BINARY_DIR}/${PROJECT_NAME})

if (WIN32)
    target_include_directories(${PROJECT_NAME} PUBLIC
        ExamplePage
        ModelView
    )
    if (BUILD_ELAPACKETIO)
        target_link_libraries(${PROJECT_NAME} PRIVATE
            Qt${QT_VERSION_MAJOR}::Widgets
            ElaWidgetTools
            ElaPacketIO
        )
    else ()
        target_link_libraries(${PROJECT_NAME} PRIVATE
            Qt${QT_VERSION_MAJOR}::Widgets
            ElaWidgetTools
        )
    endif ()

else ()
    target_include_directories(${PROJECT_NAME} PUBLIC
        ExamplePage
        ModelView
    )
    target_link_libraries(${PROJECT_NAME} PRIVATE
        Qt${QT_VERSION_MAJOR}::Widgets
        ElaWidgetTools
    )
endif ()

if (${QT_VERSION} VERSION_LESS 6.1.0)
    set(BUNDLE_ID_OPTION MACOSX_BUNDLE_GUI_IDENTIFIER com.example.${PROJECT_NAME})
endif ()
set_target_properties(${PROJECT_NAME} PROPERTIES
    ${BUNDLE_ID_OPTION}
    MACOSX_BUNDLE_BUNDLE_VERSION ${PROJECT_VERSION}
    MACOSX_BUNDLE_SHORT_VERSION_STRING ${PROJECT_VERSION_MAJOR}.${PROJECT_VERSION_MINOR}
    MACOSX_BUNDLE TRUE
    WIN32_EXECUTABLE TRUE
    VS_DEBUGGER_WORKING_DIRECTORY "${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}"
    VS_DEBUGGER_COMMAND "${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}/${PROJECT_NAME}.exe"
)

if (QT_VERSION_MAJOR EQUAL 6)
    qt_finalize_executable(${PROJECT_NAME})
endif ()

include(GNUInstallDirs)
install(TARGETS ${PROJECT_NAME}
    LIBRARY DESTINATION ${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}
    RUNTIME DESTINATION ${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}
)
if (MSVC)
    install(
        FILES $<TARGET_PDB_FILE:${PROJECT_NAME}>
        DESTINATION ${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME} OPTIONAL)
endif ()
find_program(WINDEPLOYQT_EXECUTABLE windeployqt HINTS "${QT_SDK_DIR}/bin")
if (WIN32)
    install(CODE "
    if(EXISTS \"${WINDEPLOYQT_EXECUTABLE}\" AND NOT EXISTS \"${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}/platforms\")
        execute_process(
            COMMAND \"${CMAKE_COMMAND}\" -E env PATH=\"${QT_SDK_DIR}/bin\"
                \"${WINDEPLOYQT_EXECUTABLE}\"
                \"$<TARGET_FILE_DIR:${PROJECT_NAME}>/$<TARGET_FILE_NAME:${PROJECT_NAME}>\"
                --dir \"${CMAKE_INSTALL_PREFIX}/${PROJECT_NAME}\"
                --no-compiler-runtime
                --no-system-d3d-compiler
                --no-opengl-sw
                --verbose 1
        )
    endif()"
    )
endif ()

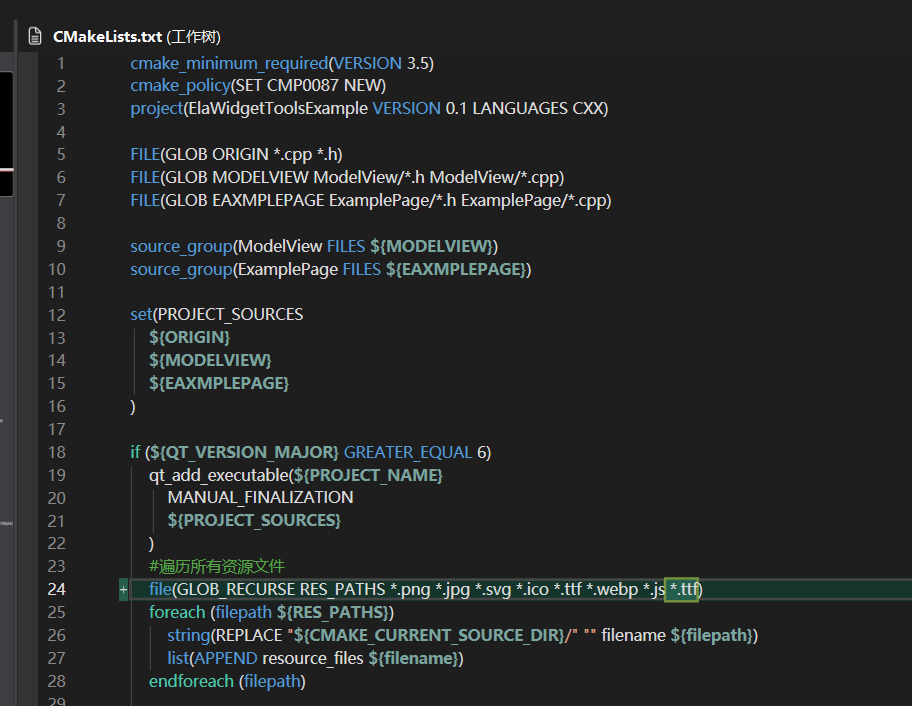

更改部分如图所示：

编译并部署

经过以上步骤，此时应该能成功编译了。

部署步骤，需要把输出目录中ElaWidgetTools、ElaWidgetToolsExample两个文件夹的内容复制到同一个文件夹中，

并且把ElaWidgetToolsExample.html改名为index.html，然后部署到如nginx等http服务器中即可。

需要在nginx的server块中添加配置：

server {
    省略。
    add_header Cross-Origin-Opener-Policy same-origin;
    add_header Cross-Origin-Embedder-Policy require-corp;
}
